EOTT50-32-250 Mechanical Seal Matching Pump TUJ88 Seal Pump Seal

Brand Name : JR

Model Number : EOTT50-32-250

Certification : iso9001

Place of Origin : MADE IN CHINA

MOQ : 100PC

Price : Negotiated

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000000PC/Month

Delivery Time : 10DAYS

Packaging Details : box as requirement

Material : SIC SIC FKM Cer Car Nbr

Function : for Oil Pump, Water Pump

Transport Package : box

HS Code : 848420090

Specification : BQFD Cartridge Seal Mechanical Shaft Seal

Certificate : ISO9001

Type : Mechanical Seal BQFD Cartridge Mechanical Sea

Standard or Nonstand : Standard

Style : BQFD Cartridge Mechanical Sea

Contact Now

EOTT50-32-250 Mechanical Seal Matching Pump TUJ88 Mechanical Pump Seal

Operations Conditions:

Product parameters
Sealed chamber temperature: -20 ℃~+200 ℃
Sealing chamber pressure: ≤ 20 bar
Linear velocity: ≤ 10m/s
Shaft diameter size: (20-200mm)
Springs and metal parts: 316L or 2205, 2605, 2507
DESCRIPTION
The TUJ88 mechanical seal EOTT mechanical seal of Tongji slurry pump has a compact structure and is easy to install, making it suitable for industries such as power plants and environmental treatment.

Materials:

Stationary Ring: Ceramic/Sic/TC
Rotary Ring: Carbon/Sic/TC
Secondary Seal: NBR/EPDM/Vit
Spring and Metal Part: Stainless Steel

Performance Capabilities:

Temperature	-20℃ to 200℃, dependent on the elastomer
Pressure	Up to 2.5MPA
Speed	Up to 15 m/s
End play/axial float allowance	±0.1mm
Size
Brand	JR
Face	Carbon, SiC, TC
Seat	Ceramic, SiC, TC
Elastomer	NBR, EPDM, FKM etc.
Spring	SS304, SS316
Metal parts	SS304, SS316
Packing	Individual packing ,1 pc in 1 small box is available as well

EOTT50-32-250 Mechanical Seal Matching Pump TUJ88 Seal Pump Seal

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on

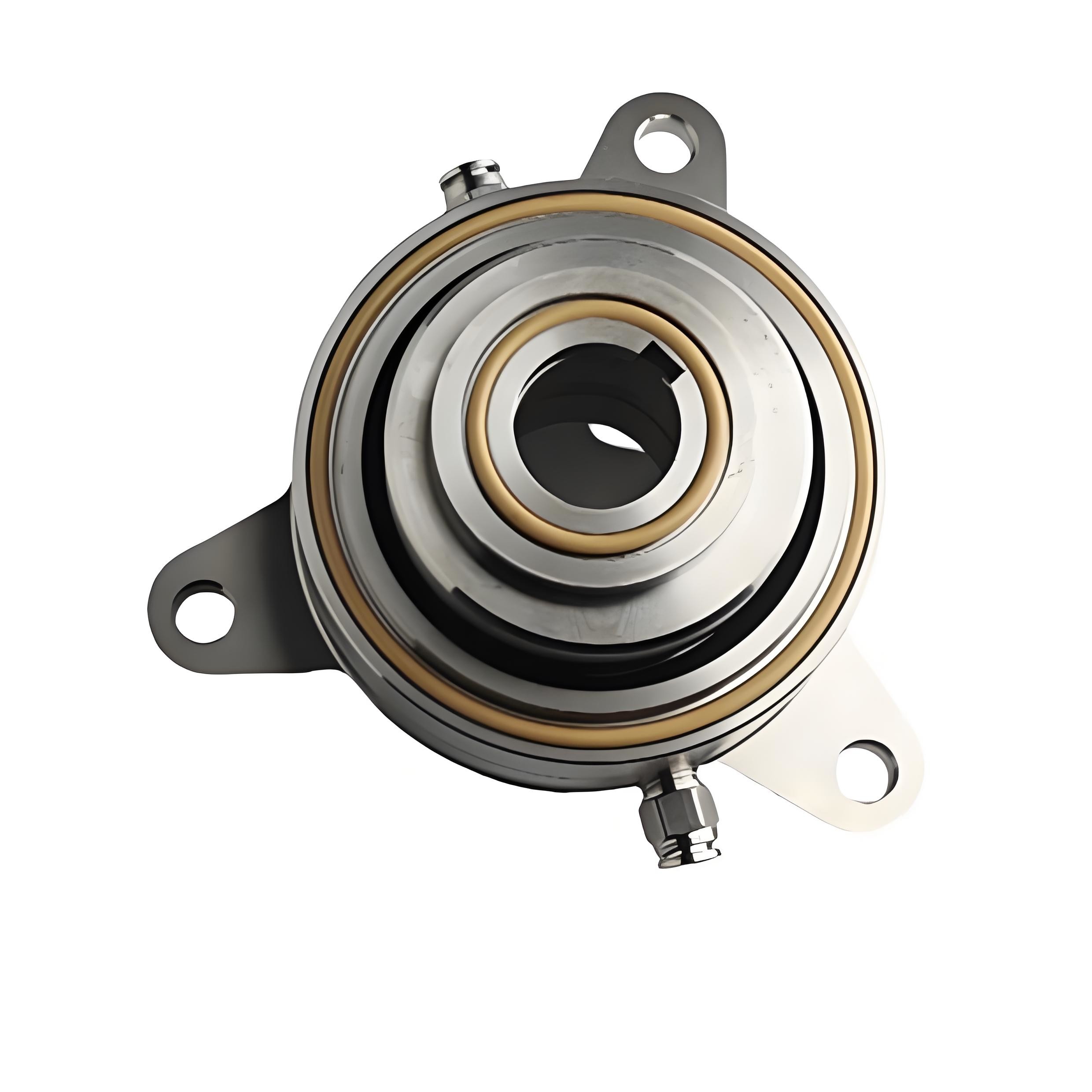

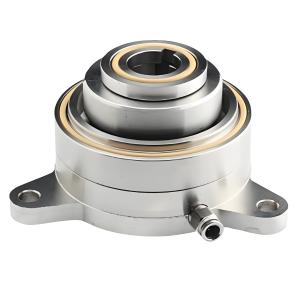

EOTT50-32-250 Mechanical Seal Matching Pump TUJ88 Seal Pump Seal Images
