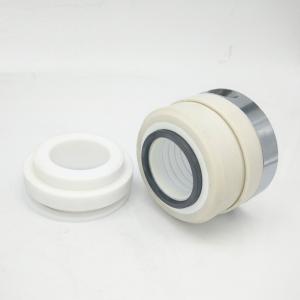

Multi Spring PTFE Bellow Seals

Brand Name : JR

Model Number : WB2

Certification : iso9001

Place of Origin : MADE IN CHINA

MOQ : 10PC

Price : Negotiated

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000PC/Month

Delivery Time : 20-30DAYS

Packaging Details : box as requirement

Material : SIC SIC PTFE

Function : for Oil Pump, Water Pump

Transport Package : box

HS Code : 848420090

Certificate : ISO9001

Type : PTFE Bellows Shaft Mechanical Seal

Standard or Nonstand : Standard

Specification : wb2 mechanical seal

Size : inch as drawing

Product name : Metal bellow mechanical seal wb2

Contact Now

John Crane Bellow Seal PTFE Bellows Mechanical Seal Type152 Wb2 Multi-Spring Single Face PTFE Seal

Operations Conditions:

Equivalent to John Crane WB2 seal
PTFE bellows design, Outside mounted,used in strong corrosive chemical occasions
Mediums: Sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid, and nitric acid with various degrees, etc.
Temperature: ≤120°C
Pressure: ≤0.5MPa
Speed: ≤ 10 m/Sec

Materials:

Stationary Ring:,Ceramic(Alumina)
Rotary Ring:Teflon,Silicon Carbide Reaction Bonded,Ceramic(Alumina)
Secondary Seal:
Spring and Metal Parts:Stainless Steel
Applications:Sulfuric acid,hydrocarbon acid,phosphoric acid,acetic acid,and nitric acid With various degrees,etc.
Seat Types:
Applications:Clean Water

Performance Capabilities:

Temperature	≤120℃
Pressure	Up to 0.5 Mpa
Speed	Up to 10 m/s
End play/axial float allowance	±0.1mm
Size	25mm to 60mm
Brand	JR
Face	Ceramic, SIC
Seat	SIC
Elastomer	PTFE
Spring	SS304, SS316
Metal parts	SS304, SS316
Idividual Packing	Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

1.PTFE Bellows Shaft Mechanical Seals For Chemical Pumps sealing WB2
2.self-adjusting to shaft misalignments deflections
3.the seal fulfills very specific leakage requirements.

Multi Spring PTFE Bellow Seals

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
